The built in electric oven in the house had broken so I bought a new one from the fantastic AO.com. Ordered on a Sunday and the new oven was delivered the next day - an amazingly good service!
![Fitting Electric Oven - How to Connect New World NW601F Built In Electric Oven Fitting Electric Oven - How to Connect New World NW601F Built In Electric Oven](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh8j5CWShfQgDyBxVT5Z-kL_w0Ui-G0h8ytYcMe19rrXPBxH5V3uMyijrda40KctcYFKtdH_9BRFm_Qw5nL9Uw4IIc9Nk9xC6ut178Sj07k3kOUlHgaRMafFCvGMqykL0oLIQFbhyphenhyphenKMe_5t/s1600/2014-09-14+11.41.08.jpg) |
Replacing Electric Oven - How to Connect New World NW601F Built In Electric Oven |
How to Access the Terminals on New World NW601F Built In Electric Oven?
The rear of the oven has a black plastic cover that conceals the electrical terminals, you may need to use a small screwdriver to unclip the tabs that clip into place preventing the cover opening accidentally. Once the cover is open the terminals are visible so you can connect the N, L and Earth cables to the oven with the blue, brown and green cables. Once done, refit the oven in the kitchen and screw the sides to the units.
![Fitting an electric oven to existing socket Fitting an electric oven to existing socket](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh_nF9dJK1NdfMwu9TCIpQr3Pnk99GlVkMyhwc0WN-8PQCMIDYkDSmzEtEDUa4q8PXeZUBVuTjrPbcL0y13bRZWpsKlNYaKsF8kzlAGm22xkQ9lcim1rnbnHlaJdDYykg-gerxck1FNogjb/s1600/fitting-electric-oven1.JPG) |
Fitting an electric oven to existing socket |
![Fitting an electric oven to existing power supply Fitting an electric oven to existing power supply](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEh8iAyN03qecKeCcYrD8f0N0M4FVPz3vLQaDMdBjKNo_-Hsi_AFFphG52ozN9_QetKChLwYXoHVFgWS3XRf66y9vIcjg-HgaZnSIqA0i73TEFNKJKIGSbuvoSJJSiNZ1nOL0H-zGsVcHlTO/s1600/fitting-electric-oven2.JPG) |
Fitting an electric oven to existing power supply |
![How to open electrical terminal cover on New World oven How to open electrical terminal cover on New World oven](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEipMje4t4gOzdDwea2p1HrnBrVyvd9Sir-5LokMYEAeMa82b0va5QreROs1H2qv6YZJOhs5R8NwnA8TluISfp5MOB1AbQ6qFXRGzGSWVPMZHckny90mUjgBserrOIvWPDKf5D1UBO5bVzNV/s1600/fitting-electric-oven3.JPG) |
How to open electrical terminal cover on New World oven |
![How to open electrical terminal cover on New World oven How to open electrical terminal cover on New World oven](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEjQReZqFSalb-MoT9N1fMEHWY2IjY1drTyKgaXvWj2tpbie0MsdLDDdX-fZwqjDDyStEPalFs2vXMWV1ecW5JPtM12JoxlmhbffgWPWewNb_Xax5UIlKpyrLhAv5K2Mg7QBaFDwHjelEZJp/s1600/fitting-electric-oven4.JPG) |
How to open electrical terminal cover on New World oven |
![Fitting Electric Oven - How to Connect New World NW601F Built In Electric Oven Fitting Electric Oven - How to Connect New World NW601F Built In Electric Oven](https://blogger.googleusercontent.com/img/b/R29vZ2xl/AVvXsEgayq8g2tyM61Prdpst56Cngcp5E3auDzGQ8g5KTHCVsxnRXVm-BF_618YC8YFSiRlu8PLmQetkZ7_TrrY2P2esJzBXmNO_gIBVQ5G3wPCqZ67Su2GTTxTt2MzcZczh_klX9B9B4ARf_8Qd/s1600/2014-09-16+08.38.43.jpg) |

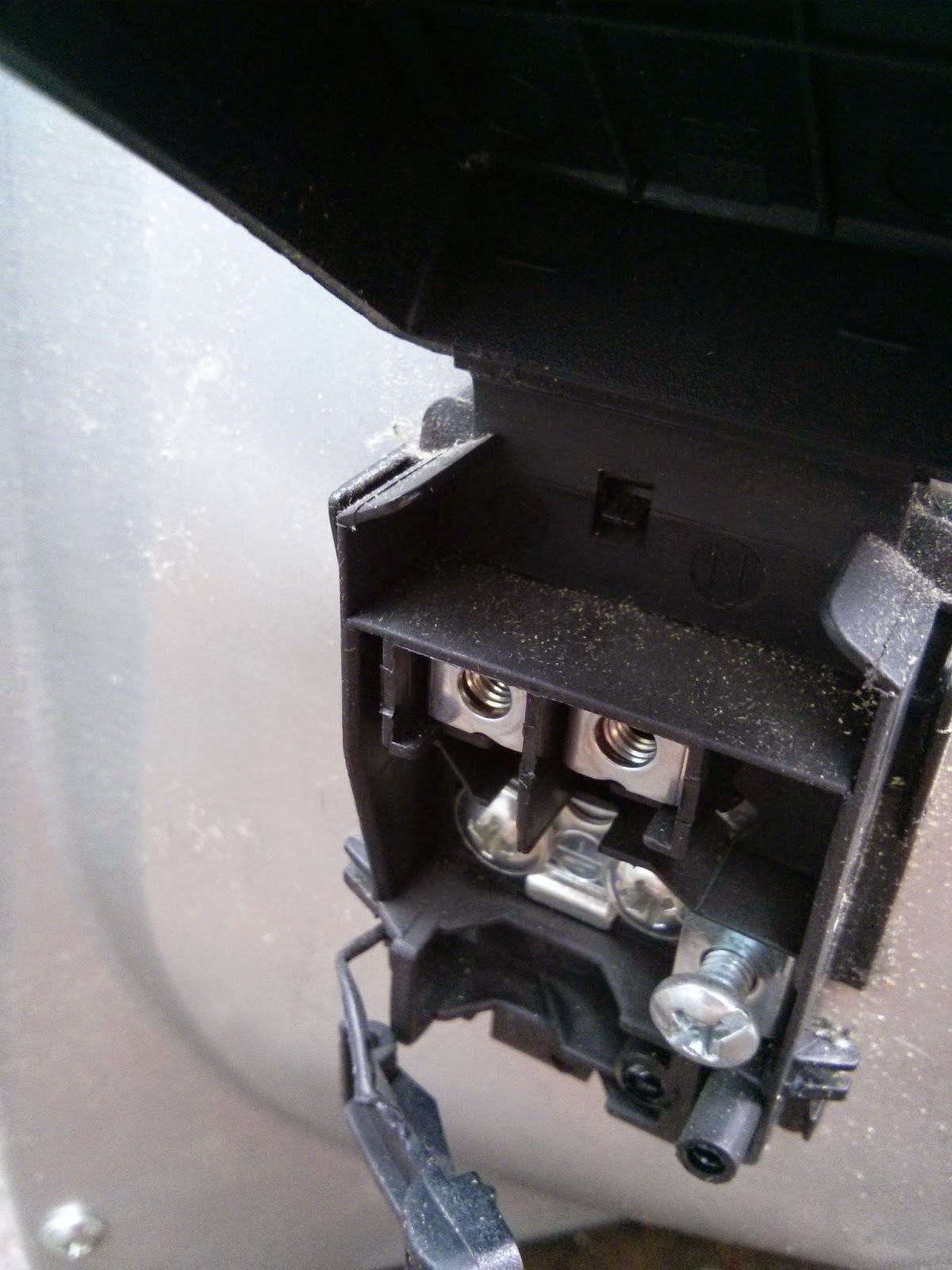

How to fit New World NW601F Built In Electric Oven to power supply |
